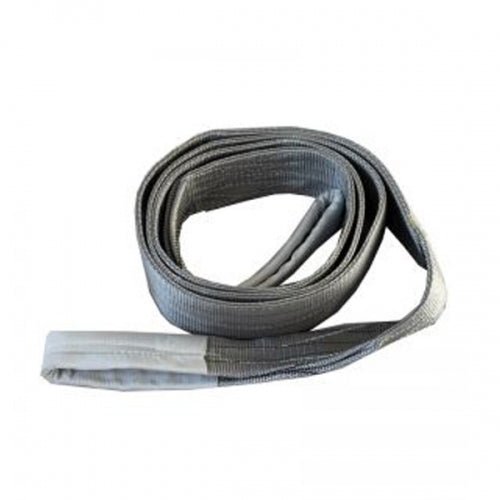

4000KG DUPLEX FLAT WEB LIFTING SLING

VAT
£12.10
SKU BLRS0401

Flat Webslings are available up to 30 Tonne lifting capacity

They are manufactured from a single length of 100% polyester webbing

High Strength of Weight Ratio

Wide choice of lifting modes

Lifts smooth objects without damage

Anti-cut and anti-abrasion protection available

Postioned correctly the sling wears evenly along its life

Manufactured and labelled in accordance with BS EN1492-1:2000

Standard Safety Factor 7:1

Wide usable temperature range -40° C to +180° C

Standard stock sizes shown, other sizes and formats manufactured to order

MAXIMUM WORKING LOAD LIMITS (WLL) (KG)
WLL- 4000
Duplex width – 120mm
Straight Lift (mode factor 1.0) – 4000
Choke Lift (Kg) (mode factor 0.8) – 3200
Parallel to 7° (Kg) (mode factor 2.0) – 8000
Parallel to 7° – 45° (Kg) (mode factor 1.4) – 5600
Parallel to 45° – 60° (Kg) (mode factor 1.0) – 4000
