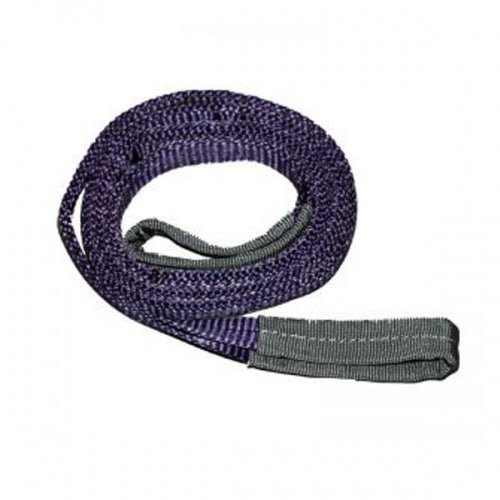

Flat Webslings are available up to 30 Tonne lifting capacity
They are manufactured from a single length of 100% polyester webbing
High Strength of Weight Ratio
Wide choice of lifting modes
Lifts smooth objects without damage
Anti-cut and anti-abrasion protection available
Postioned correctly the sling wears evenly along its life
Manufactured and labelled in accordance with BS EN1492-1:2000
Standard Safety Factor 7:1
Wide usable temperature range -40° C to +180° C
Standard stock sizes shown, other sizes and formats manufactured to order
MAXIMUM WORKING LOAD LIMITS (WLL) (KG)
WLL – 10000
Duplex width – 300mm
Straight Lift (mode factor 1.0) – 10000
Choke Lift (Kg) (mode factor 0.8) – 8000
Parallel to 7° (Kg) (mode factor 2.0) – 20000
Parallel to 7° – 45° (Kg) (mode factor 1.4) – 14000
Parallel to 45° – 60° (Kg) (mode factor 1.0) – 10000
