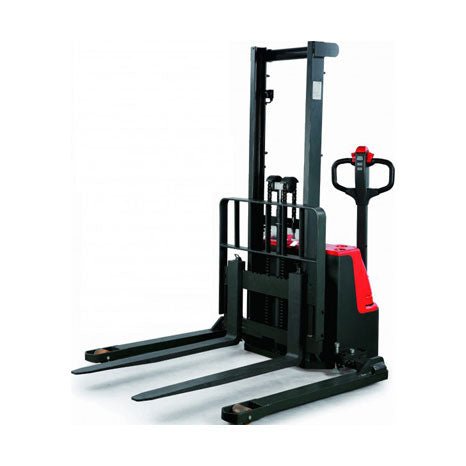

This 2.9 metre lift electric straddle stacker is an economical full-electric straddle stacker with a rated capacity of 1000kg and maximum lifting height 2.9m.
The compact and light design is suitable for a variety of low duty applications in the warehouse.
- Built in charger with UK 3pin plug
- Battery discharge indicator with automatic cut off function for higher battery life
- 4 wheel design with side tiller for higher stability and perfect viewing
- Lifting Capacity: 1000kg
- Minimum Fork Height: 90mm
- Lift Height: 2840mm
- Lowered Mast Height: 1950mm
- Extended Mast Height: 3420mm
- Height of Tiller in drive position: 785/1300mm
- Axle Loading, Laden front/rear: 786/970kg
- Axle Loading, Unladen front/rear: 530/226kg
- Service Weight: 756kg
- Load centre: 600mm
- Length of face to forks: 688/700mm
- Turning Radius: 1485mm
- Aisle Width for Pallets 1000 x 1200 crossways: 2341mm
- Aisle Width for Pallets 800 x 1200 lengthways: 2300mm
- Energy Consumption acc. to VDI cycle: 0.73 kWh/h
