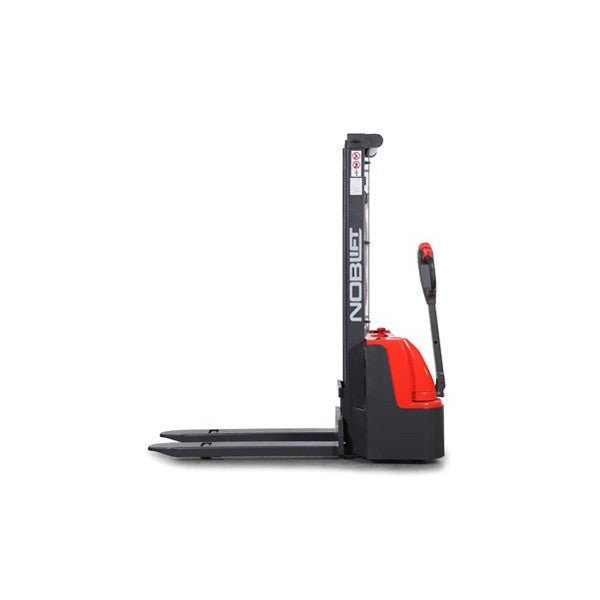

This 2.9 metre electric stacker is an economical full-electric stacker with a rated capacity of 1000kg and maximum lifting height 2.9m.
The compact and light design is suitable for a variety of low duty applications in the warehouse.
Built in charger with UK 3pin plug
Battery discharge indicatior with automatic cut off function for higher battery life
4 wheel design with side tiller for higher stability and perfect viewing
Lifting Capacity: 1000kg
Minimum Fork Height: 90mm
Lift Height: 2840mm
Lowered Mast Height: 1950mm
Extended Mast Height: 3325mm
Height of Tiller in drive position: 785/1300mm
Axle Loading, Laden front/rear: 580/930kg
Axle Loading, Unladen front/rear: 385/125kg
Service Weight: 510kg
Load centre: 600mm
Length of face to forks: 650mm
Turning Radius: 1485mm
Aisle Width for Pallets 1000 x 1200 crossways: 2318mm
Aisle Width for Pallets 800 x 1200 lengthways: 2250mm
Energy Consumption acc. to VDI cycle: 0.73 kWh/h
